Description

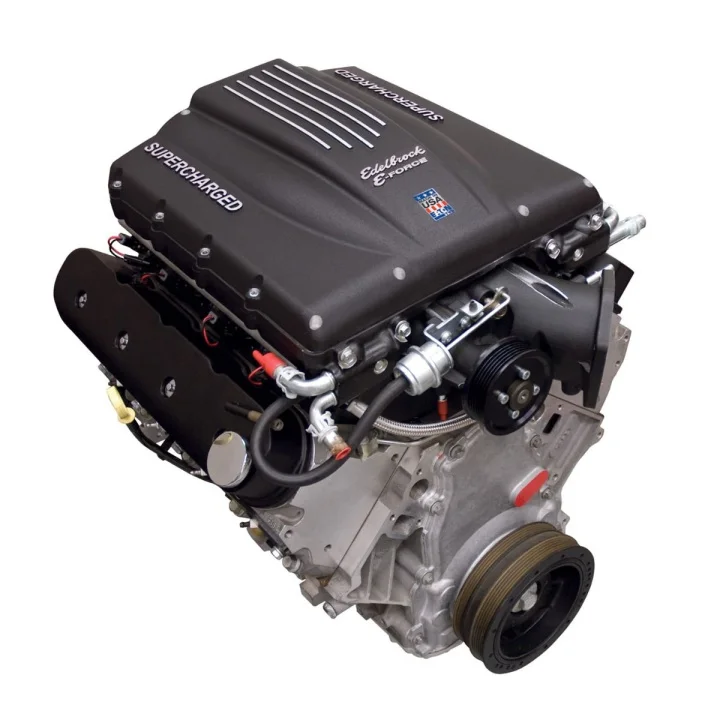

Edelbrock part #46750 Supercharged LS 416 crate engine produces an astounding 720 horsepower and 695 ft-lbs. of torque. The foundation of this engine is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. This engine features an Edelbrock supercharger with Eaton TVS 2300cc/rev rotors. Also included are the essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger equipped on this engine features a drivers side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.

Engine Specifications:

• Displacement: 416 c.i.d.;
• Bore: 4.065in;
• Stroke: 4.000 in;
• Horsepower: 720 hp;
• Torque: 695 ft-lbs.;
• Compression: 9.5:1;
• Block: LS3 Aluminum
• Crankshaft: Forged; 4340;
• Pistons: Forged Aluminum – 18cc;
• Rods: Forged H-Beam;
• Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA;
• Rocker Arms: LS3, 1.7 ratio;
• Induction: Supercharger System #1540;
• Cylinder Heads: GM with Edelbrock Valve Springs #5768;
• Finish: Black powder coated;
• Warranty: 2-year / Unlimited mileage;
• Suggested Fuel: 91 octane pump gas.
